Drawer modules

Drawer modules


Instructions when ordering:

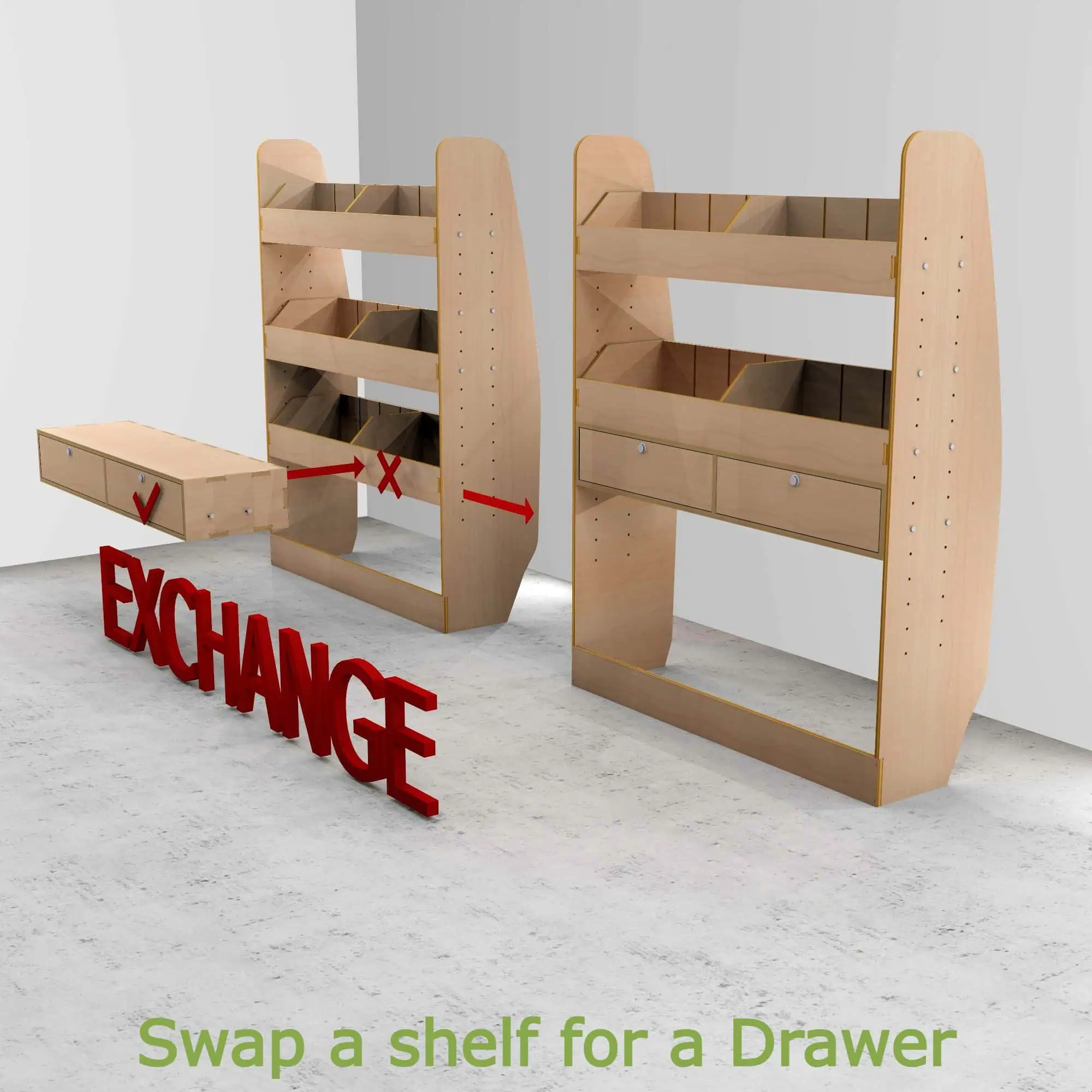

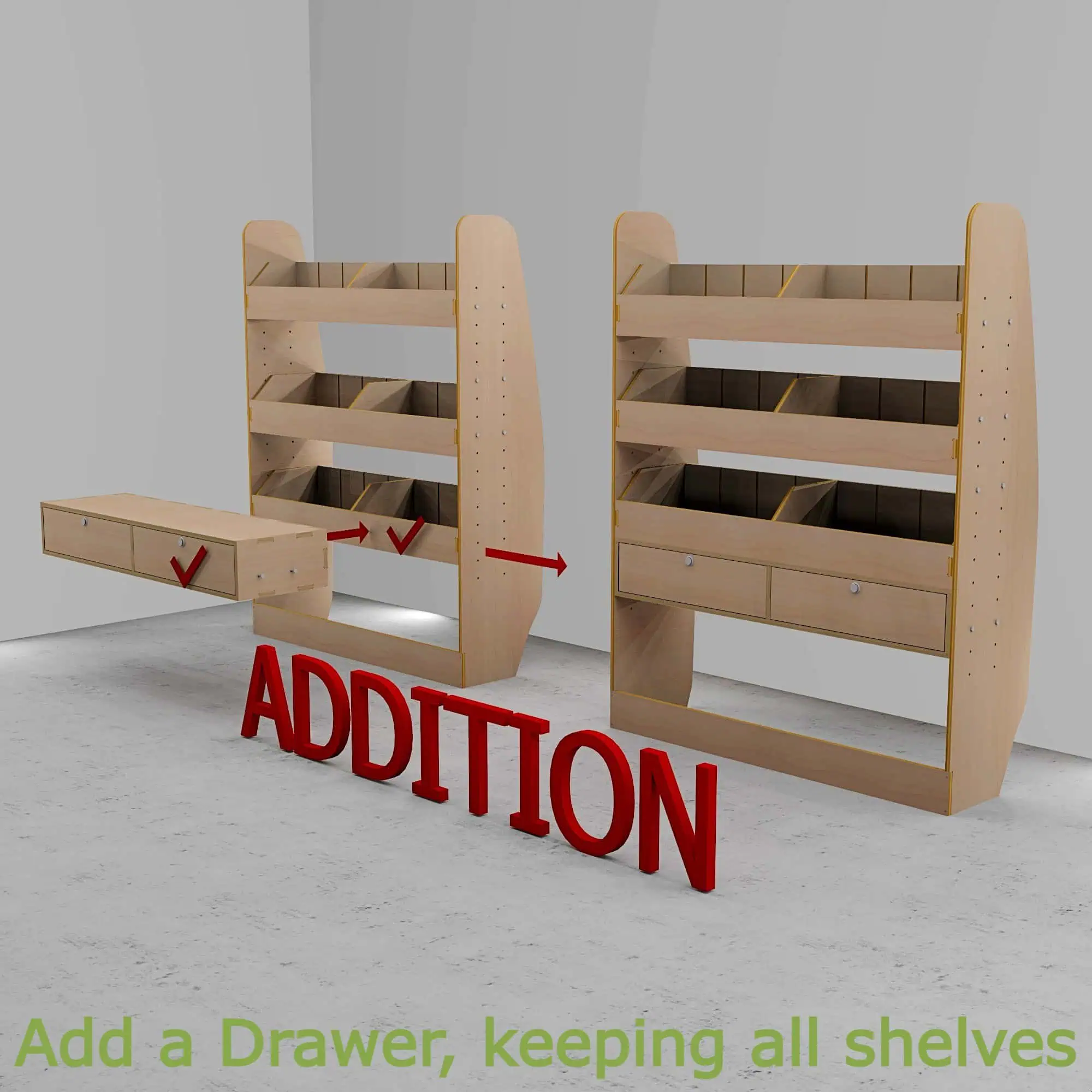

If you have purchased racking, a shelf can be exchanged for a drawer. Please select exchange drawer from the drop down menu. Subject to available space, additional drawers can also be added to your racking. Please select additional drawer.

If you have not purchased racking, please select additional drawer from the drop down menu.


Each drawer unit is fitted with a flush when locked push button catch to prevent the drawers from sliding out during travel.

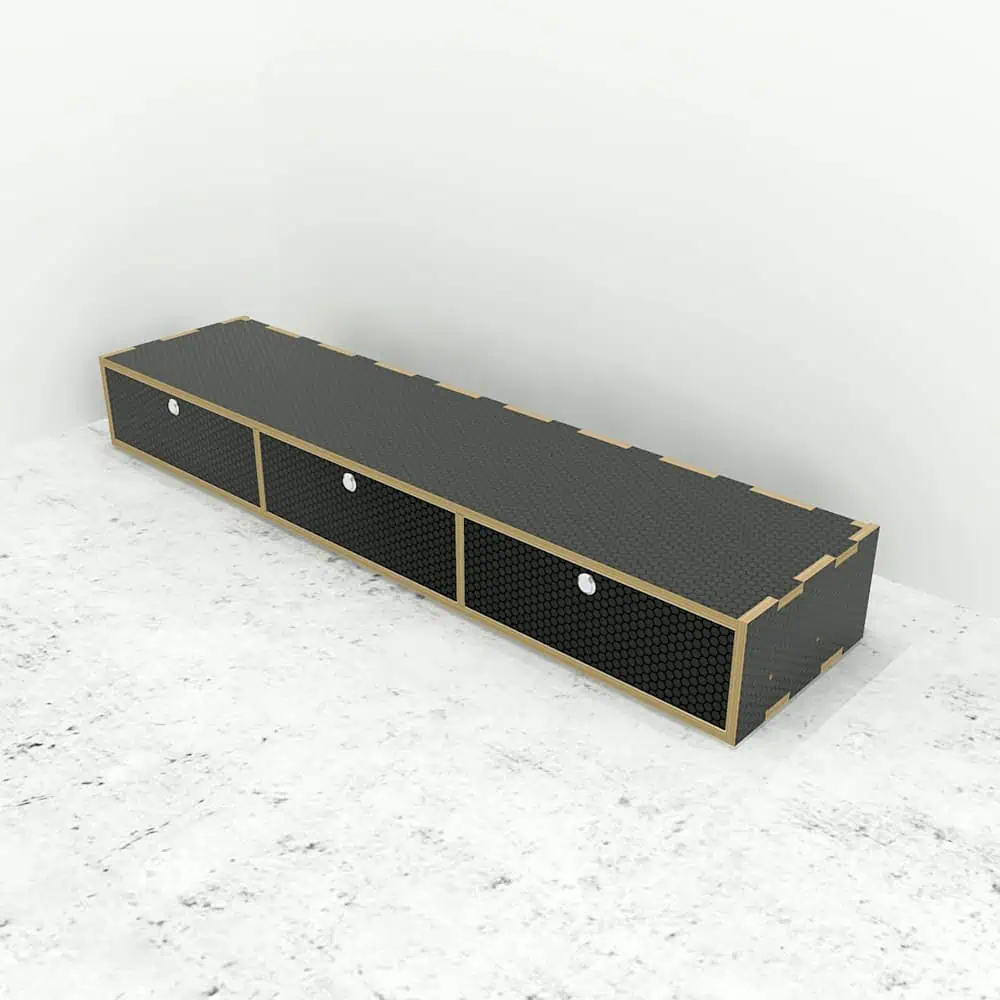

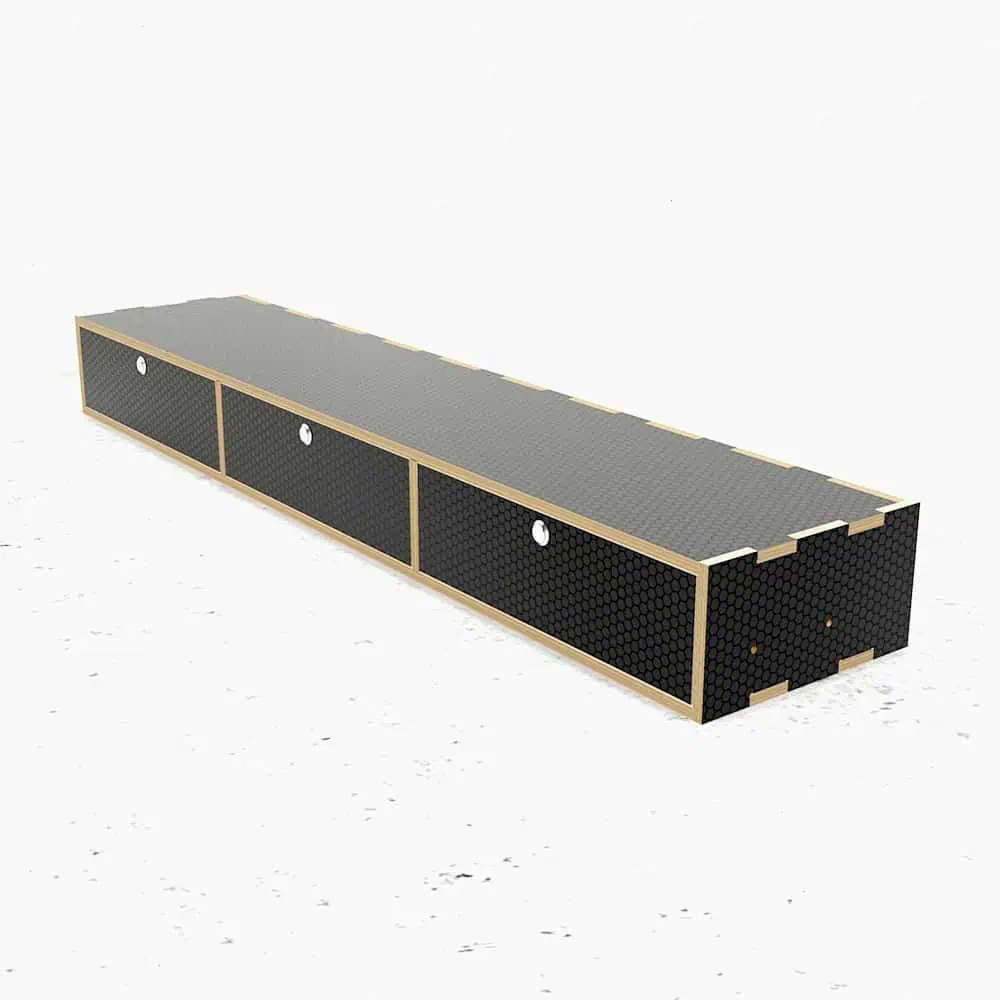

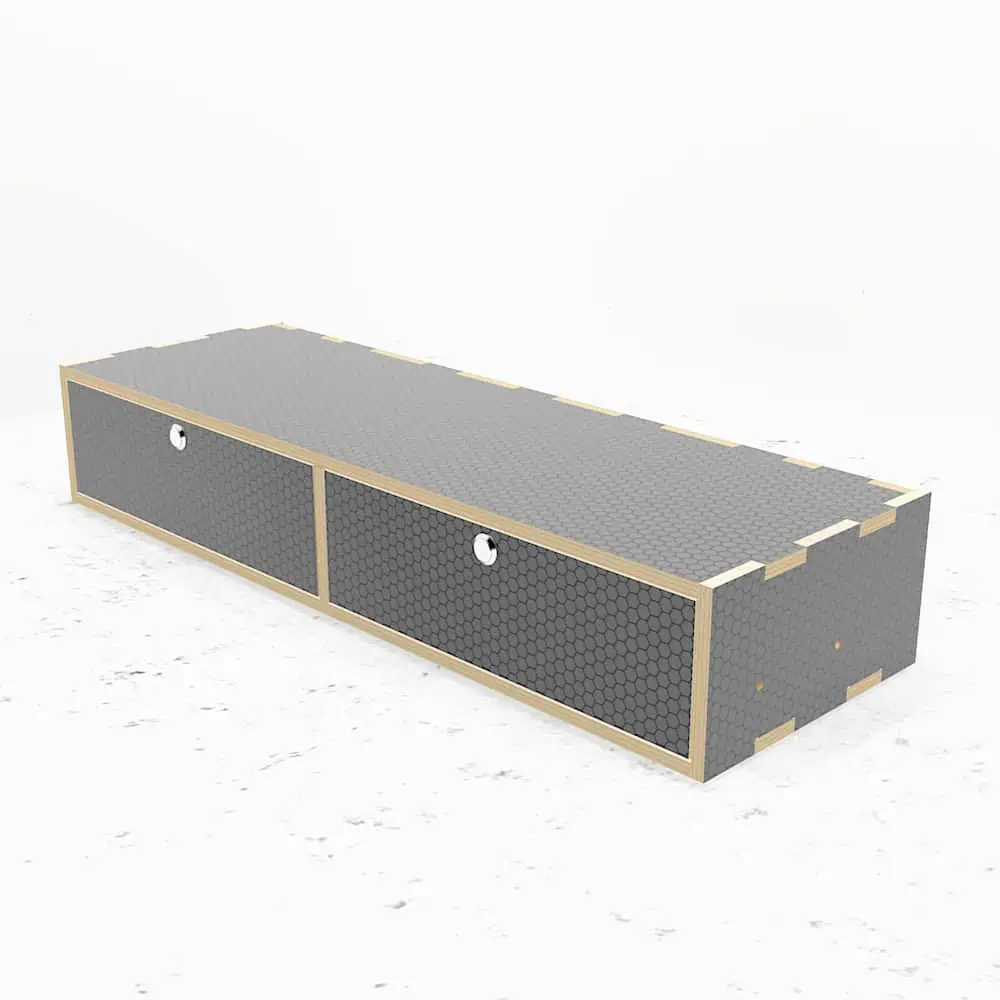

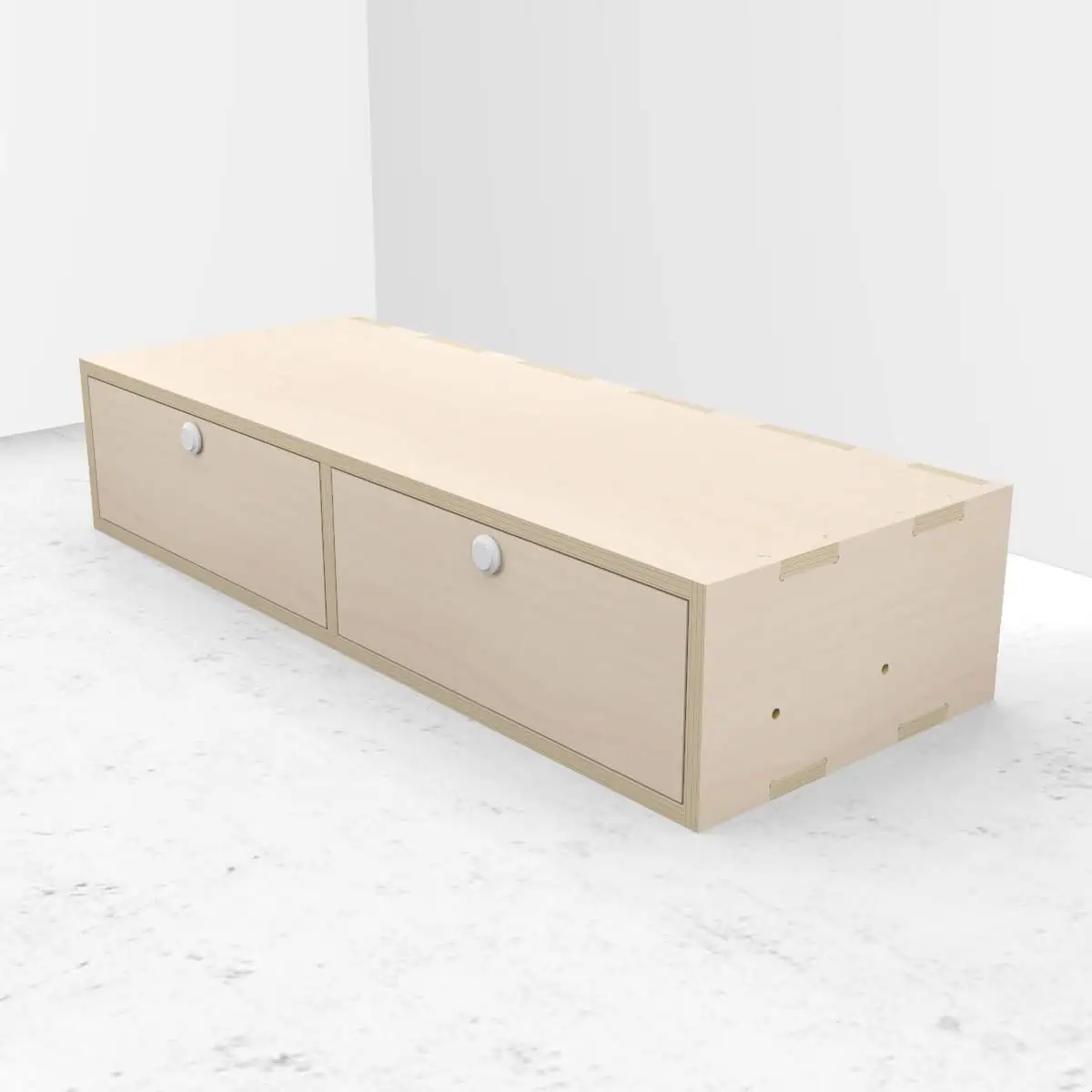

The table below details the carcass size and number of drawers in the module that you are purchasing, please refer to the gallery images for reference.



A range of drawer boxes to complement the modular shelving units enabling you to combine these units within your racking system. Fitted with heavy duty Zinc plated full extension ball bearing drawer slides.

Manufactured from quality 12mm hardwood Plywood, giving strength and also keeping weight to a minimum. Constructed using traditional mortise and tenon joints in the front, back, base and sides making the units extremely durable and strong. The drawers are supplied fully assembled that then simply need bolting between side panels.

  • Mounting height is adjustable in 50mm increments.
  • Multiple units can be stacked on top of each other.

Either choose from the options to Exchange a shelf with a drawer or add additional drawer, additional shelves and drawers can be added subject to available space.

A full fixing kit is provided along with fitting instructions.

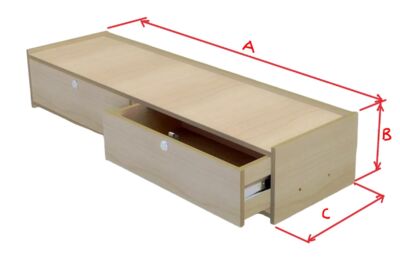

Model O/A Width (A)  Rack width Nr of drawers

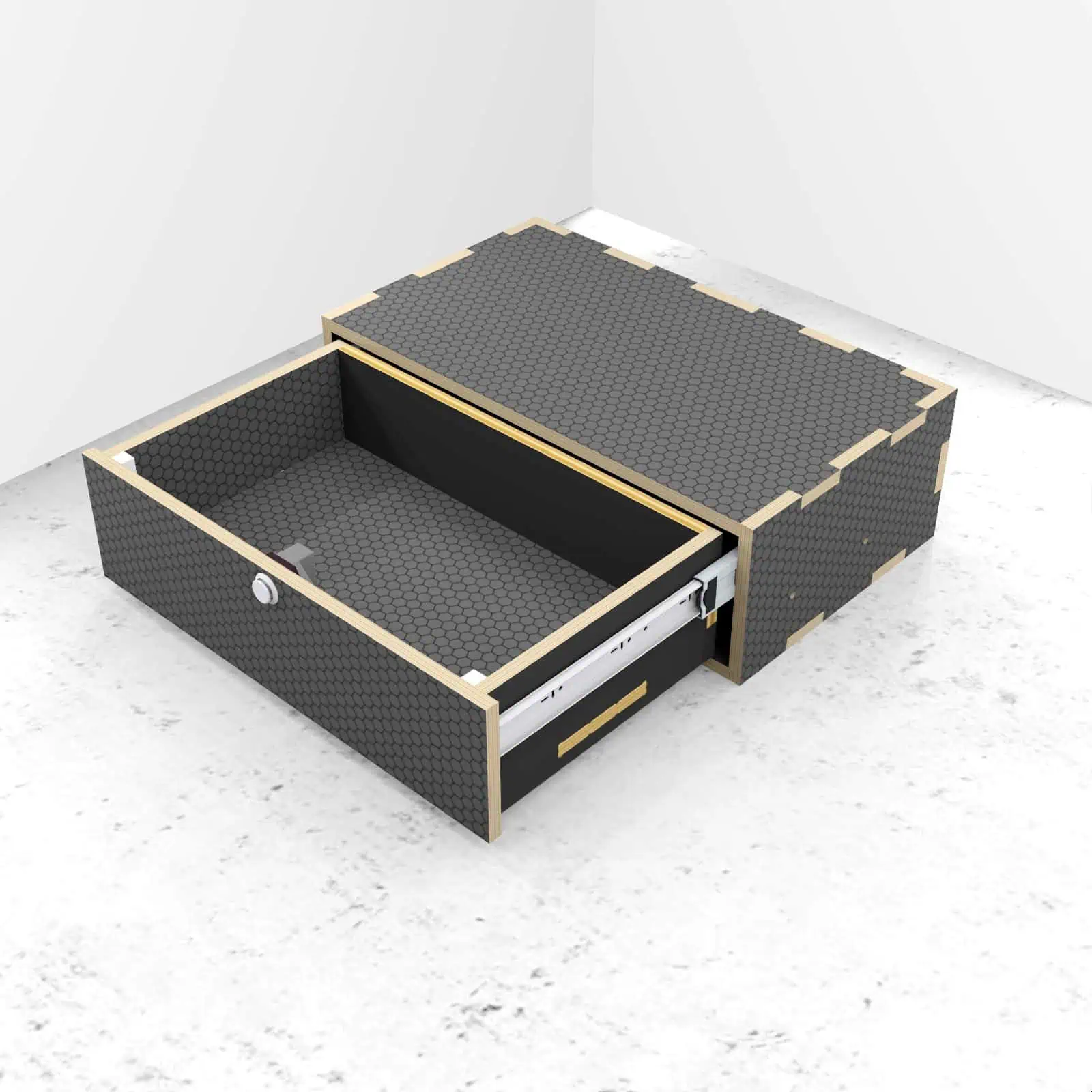

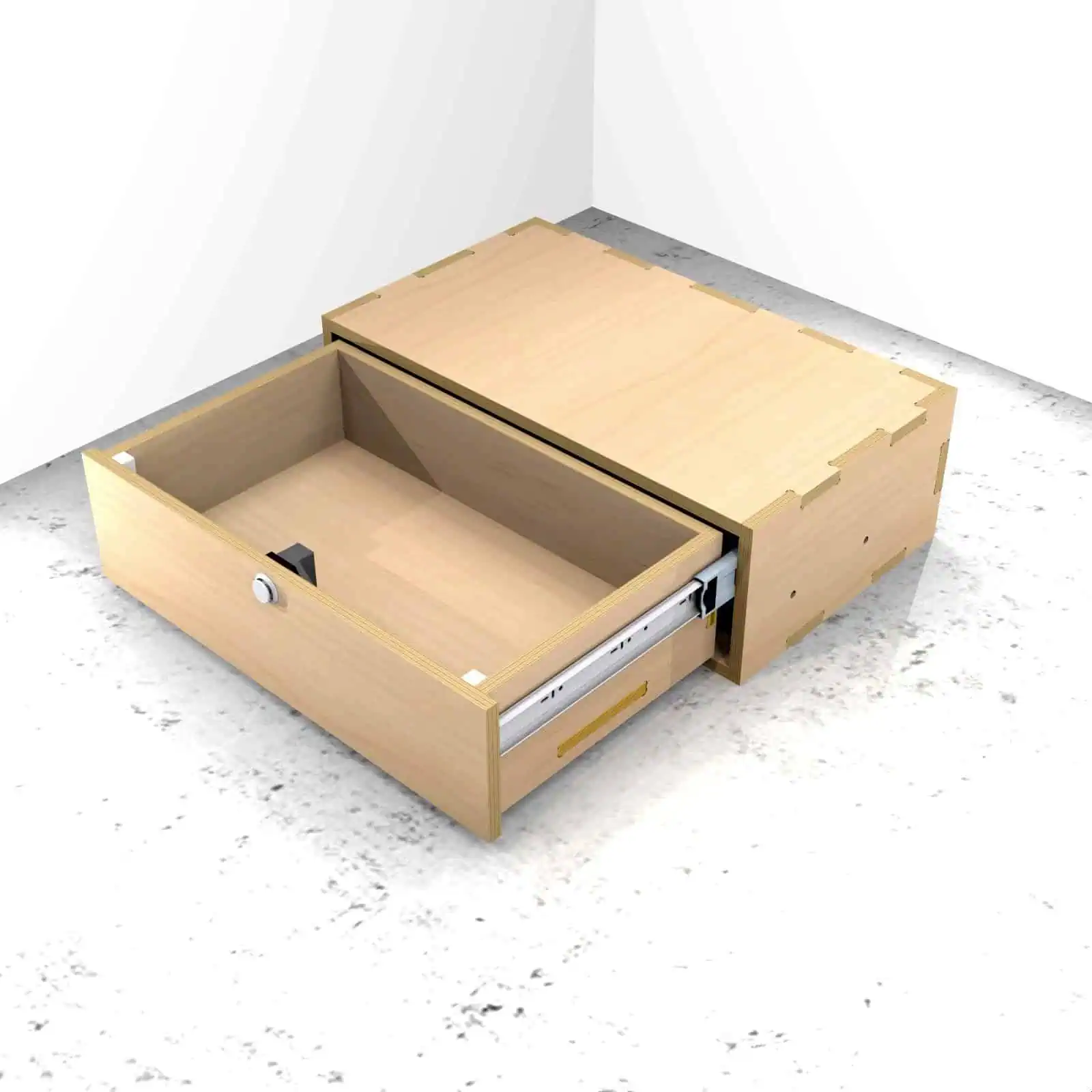

500 480 504 1

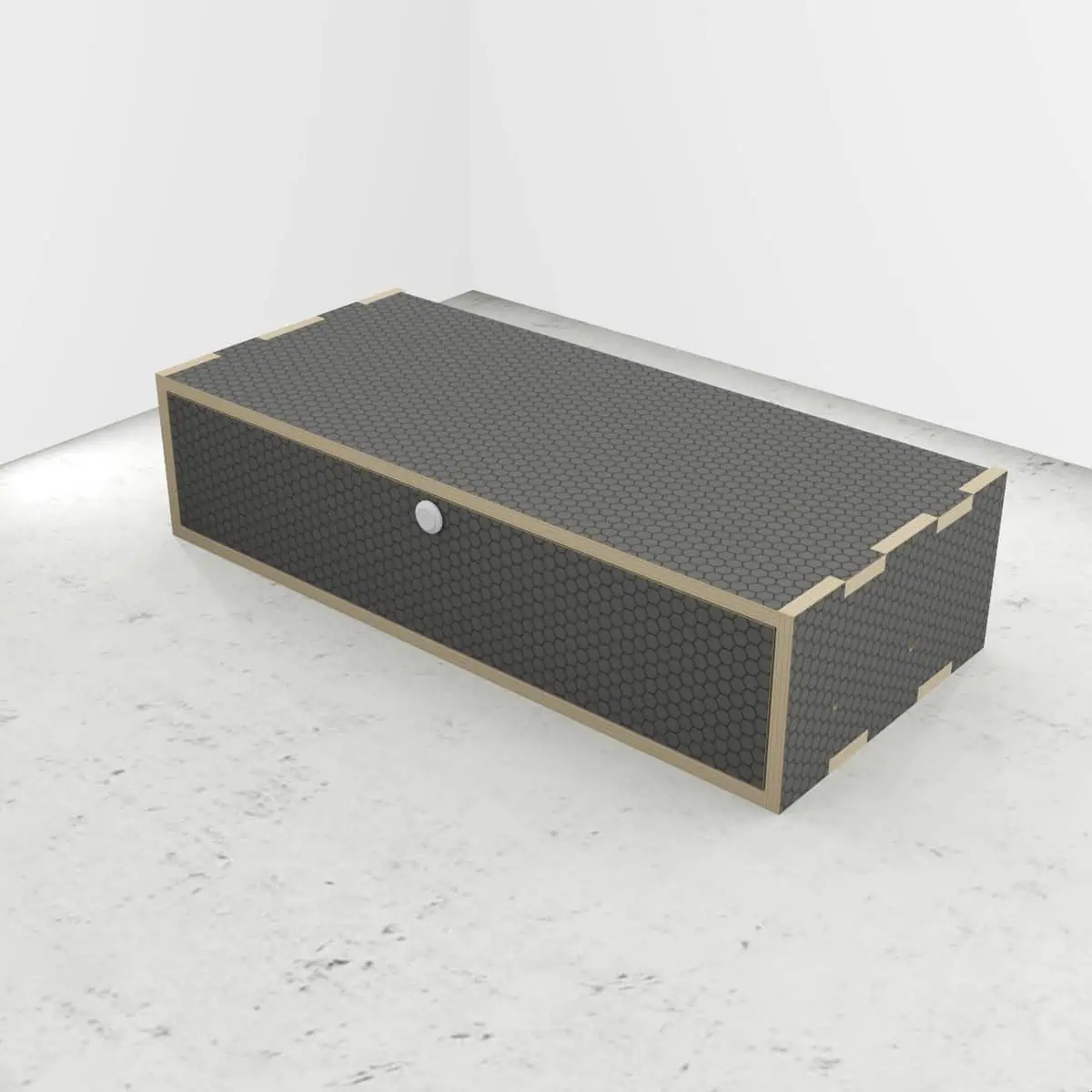

650 626 650 1

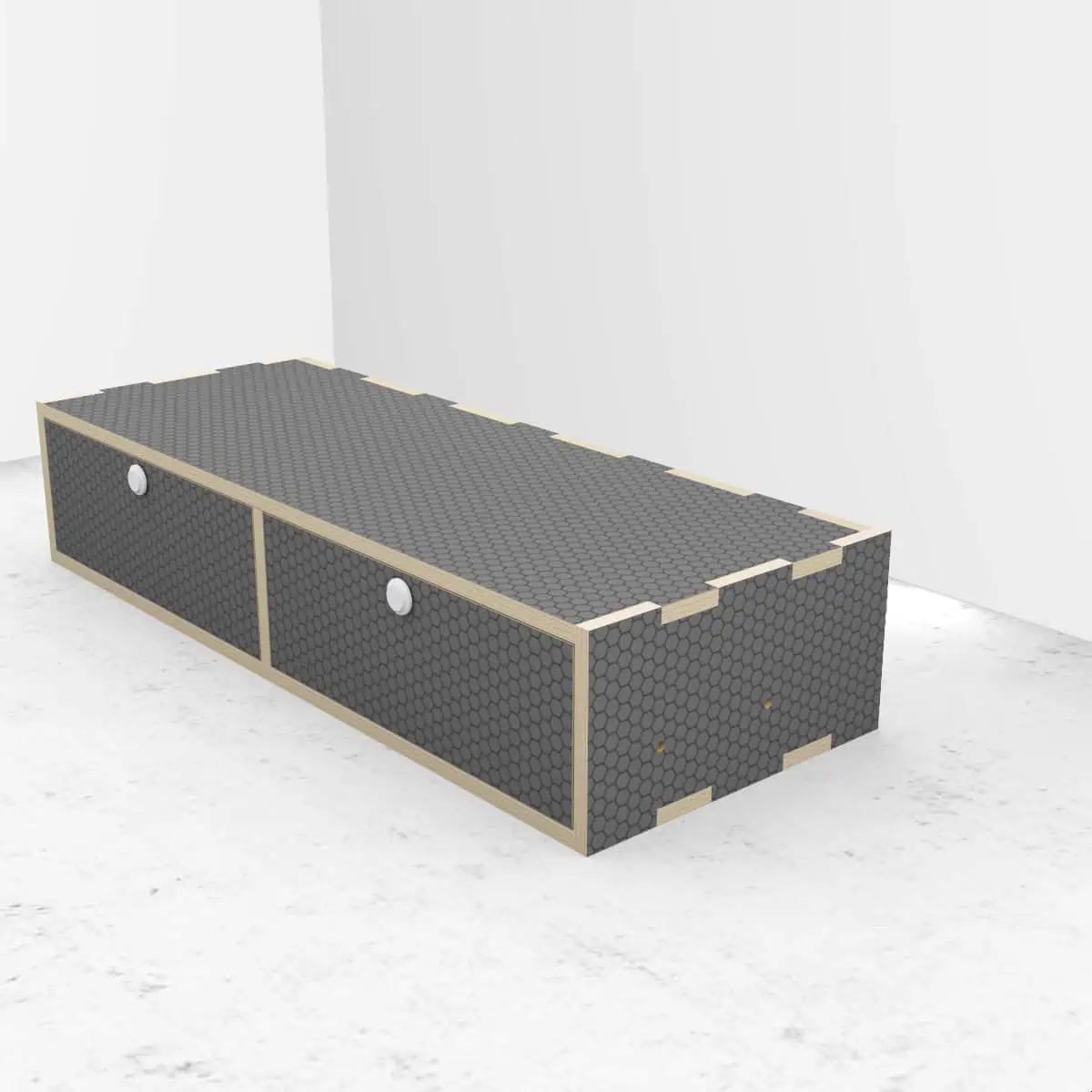

750 726 750 2
875 851 875 2

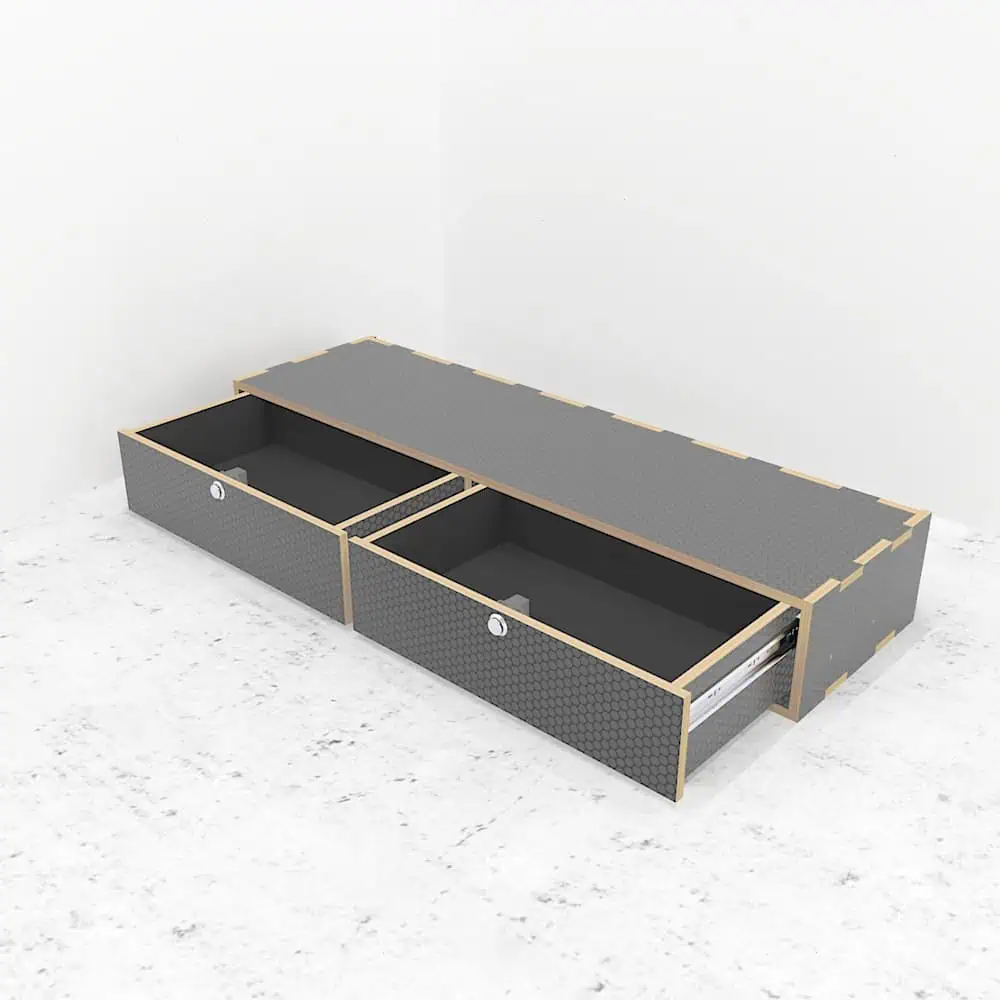

1000 976 1000 2
1200 1176 1200 3
1350 1326 1350 3
Drawer height  (B) = 150 Drawer depth (C)  = 276



Please be aware that delivery on this item may be up to 1 week

For more information / enquiries, please Contact Vanrack
